7 Day Roguelike 2016: Procedural Generation

in gamedev roguelikes 7drl

This is my second attempt at a procedurally generated space ship. The first attempt involved generating the hull first by starting with a large rectangle and stripping smaller rectangular pieces away until I got something roughly hull-looking. I would then attempt to fill the hull with rooms. Adding rooms to a preexisting hull proved messy and prone to difficult edge cases.

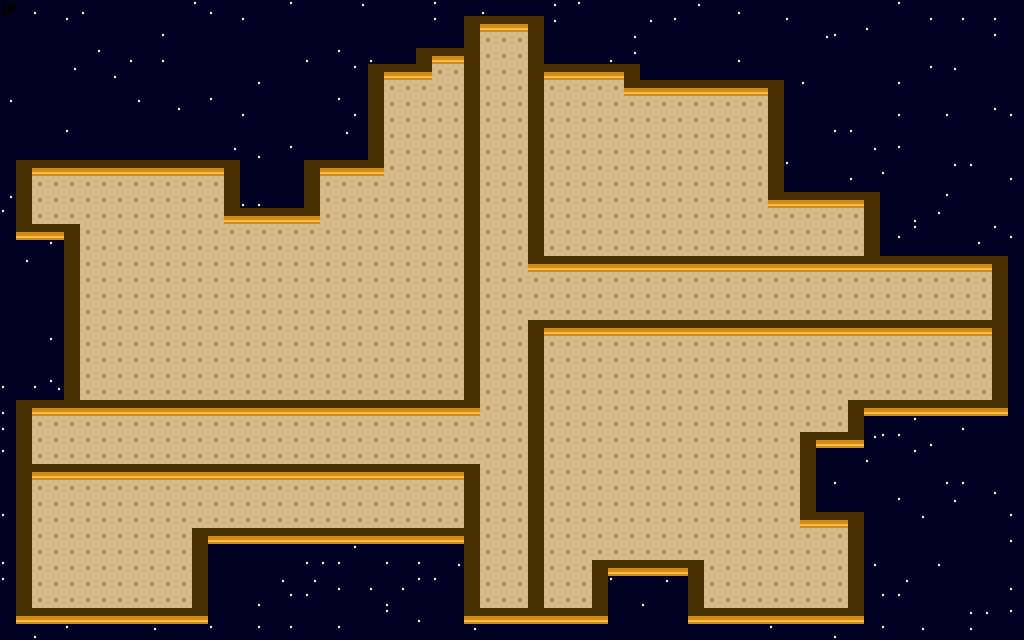

Here’s what it looked like at the point where I gave up: old

This shows my attempt at adding hallways on the inside of the ship. I was going to use some sort of binary partitioning scheme to split the space either side of the hallways into rooms, but I spent several hours making very little progress so I elected to sleep and try something else the next day.

So the next day I started the ship generator from scratch. The new plan was to start with rooms, and compose them in a ship-like way. Specifically, I start with a few long hallways a reasonable distance apart. Then I “grow” rooms around the outside of the hallways. Rooms can also be grown from the edge of existing rooms. There are a simple set of rules that prevent rooms from growing into other rooms, and for opportunistically adding doors between pairs of rooms, and adjacent rooms and hallways.

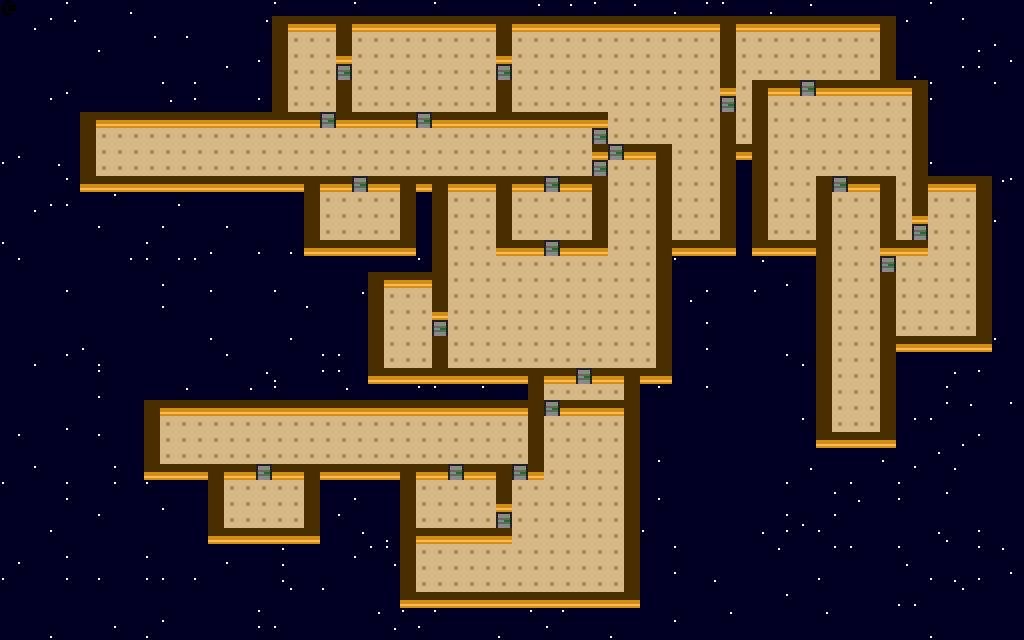

Here’s an example of the output: screenshot

It’s still not completely finished. I still need to add windows around the outside of the hull, add items and NPCs, find a starting room for the player to begin in, and add some sort of goal room or stairs to the next level.

My plan at the moment is:
