Roguelike Tutorial 2020: Part 9 - Ranged Scrolls and Targeting

In this part we’ll introduce ranged scrolls and targeting.

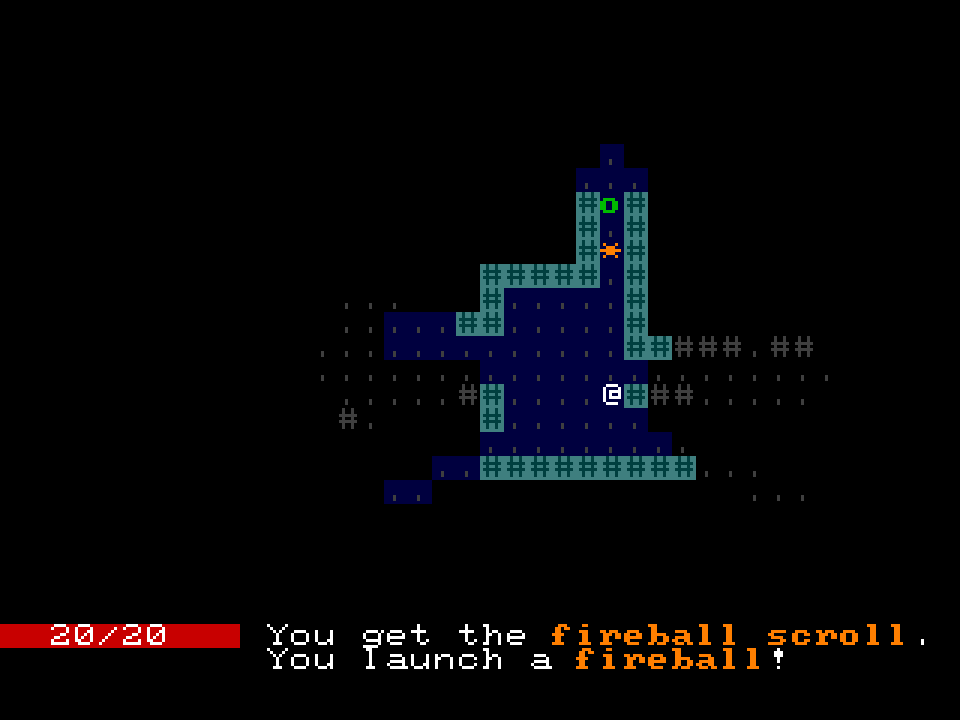

By the end of this part it will be possible to launch fireballs and confusion spells.

launch

This part is loosely based on this part of the python tcod tutorial.

Reference implementation branch for starting point: part-8-end

In this post:

Examine Command

As a first step towards ranged abilities, add an examine command that lets th player use the arrow keys and mouse to move a cursor over the game area. We’ll add a section to the UI for showing the name of the character or item at the current cursor position.

We’ll also allow the player to use the mouse to examine a cell during normal gameplay.

Add a type enumerating all the different results of examining a cell.

// game.rs
...
#[derive(Clone, Copy, Debug)]
pub enum ExamineCell {
    Npc(NpcType),
    NpcCorpse(NpcType),
    Item(ItemType),
    Player,
}
...

Add a method to World for examining a cell.

// world.rs
...
use crate::game::{ExamineCell, LogMessage};
...
impl World {
...
    pub fn examine_cell(&self, coord: Coord) -> Option<ExamineCell> {
        let layers = self.spatial_table.layers_at(coord)?;
        layers
            .character
            .or_else(|| layers.object)
            .and_then(|entity| {
                self.components
                    .tile
                    .get(entity)
                    .and_then(|&tile| match tile {
                        Tile::Npc(npc_type) => Some(ExamineCell::Npc(npc_type)),
                        Tile::NpcCorpse(npc_type) => Some(ExamineCell::NpcCorpse(npc_type)),
                        Tile::Item(item_type) => Some(ExamineCell::Item(item_type)),
                        Tile::Player => Some(ExamineCell::Player),
                        _ => None,
                    })
            })
    }
}

Add a method to GameState for examining a cell at a coordinate if it is currently visible to the player. Also add a method returning the player’s current coordinate which will come in handy soon.

// game.rs
...
impl GameState {
    ...
    pub fn player_coord(&self) -> Coord {
        self.world
            .entity_coord(self.player_entity)
            .expect("player has no coord")
    }
    ...
    pub fn examine_cell(&self, coord: Coord) -> Option<ExamineCell> {
        match self.visibility_grid.cell_visibility(coord) {
            CellVisibility::Currently => self.world.examine_cell(coord),
            _ => None,
        }
    }
}

Update the UI to have it render the currently-examined cell (if any). Also, when the cursor is controlled by the arrow keys, we’ll display a string to indicate what the cursor is for. Currently it will just be for examining cells, but later it will be for aiming spells as well.

// ui.rs
...
use crate::game::{ExamineCell, LogMessage};
use chargrid::{
    decorator::{AlignView, Alignment, AlignmentX, AlignmentY, BoundView},
    text::{wrap, RichTextPartOwned, RichTextViewSingleLine, StringView, StringViewSingleLine},
    ...
};
...
fn examine_cell_str(examine_cell: ExamineCell) -> &'static str {
    match examine_cell {
        ExamineCell::Npc(npc_type) | ExamineCell::NpcCorpse(npc_type) => npc_type.name(),
        ExamineCell::Item(item_type) => item_type.name(),
        ExamineCell::Player => "yourself",
    }
}
...
pub struct UiData<'a> {
    ...
    pub name: Option<&'static str>,
    pub examine_cell: Option<ExamineCell>,
}
...
impl<'a> View<UiData<'a>> for UiView {
    fn view<F: Frame, C: ColModify>(
        &mut self,
        data: UiData,
        context: ViewContext<C>,
        frame: &mut F,
    ) {
        ...
        if let Some(name) = data.name {
            BoundView {
                size: Size::new(HEALTH_WIDTH, 1),
                view: AlignView {
                    alignment: Alignment::centre(),
                    view: StringViewSingleLine::new(
                        Style::new().with_foreground(Rgb24::new_grey(255)),
                    ),
                },
            }
            .view(name, context.add_offset(Coord::new(0, 1)), frame);
        }
        if let Some(examine_cell) = data.examine_cell {
            BoundView {
                size: Size::new(HEALTH_WIDTH, 2),
                view: AlignView {
                    alignment: Alignment {
                        x: AlignmentX::Centre,
                        y: AlignmentY::Bottom,
                    },
                    view: StringView::new(
                        Style::new().with_foreground(Rgb24::new_grey(187)),
                        wrap::Word::new(),
                    ),
                },
            }
            .view(
                examine_cell_str(examine_cell),
                context.add_offset(Coord::new(0, 2)),
                frame,
            );
        }
    }
}

Add a field to AppState containing the current cursor position if any.

// app.rs
...
struct AppData {
    ...
    cursor: Option<Coord>,
}

impl AppData {
    fn new(screen_size: Size, rng_seed: u64, visibility_algorithm: VisibilityAlgorithm) -> Self {
        ...
        Self {
            ...
            cursor: None,
        }
    }
}
...

Update AppView::render_ui to take the name of the current cursor mode, and have it render the cursor and pass the result of examining the cell under the cursor to the UI renderer.

// app.rs
use chargrid::{
    render::{blend_mode, ColModify, ColModifyMap, Frame, Style, View, ViewCell, ViewContext},
}
...
impl AppView {
    ...
    fn render_ui<F: Frame, C: ColModify>(
        &mut self,
        name: Option<&'static str>,
        data: &AppData,
        context: ViewContext<C>,
        frame: &mut F,
    ) {
        ...
        let examine_cell = if let Some(cursor) = data.cursor {
            frame.blend_cell_background_relative(
                cursor,
                1,
                Rgb24::new_grey(255),
                127,
                blend_mode::LinearInterpolate,
                context,
            );
            data.game_state.examine_cell(cursor)
        } else {
            None
        };
        self.ui_view.view(
            UiData {
                player_hit_points,
                messages,
                name,
                examine_cell,
            },
            context.add_offset(Coord::new(0, self.ui_y_offset)),
            frame,
        );
    }
}
...

Now go update all the places where AppView::render_ui gets called and pass None as its name argument.

Update AppData::handle_input so that moving the mouse during normal gameplay sets the cursor position, and pressing a key clears the cursor. This will let the player use the mouse to examine cells, even when not in “examine” mode.

// app.rs
...
use chargrid::{
    ...
    input::{keys, Input, KeyboardInput, MouseButton, MouseInput},
    ...
}
...
impl AppData {
    ...
    fn handle_input(&mut self, input: Input) -> Option<GameReturn> {
        match input {
            Input::Keyboard(key) => {
                match key {
                    ...
                }
                self.cursor = None;
            }
            Input::Mouse(mouse_input) => match mouse_input {
                MouseInput::MouseMove { coord, .. } => self.cursor = Some(coord),
                _ => (),
            },
        }
        ...
    }
}

Add TargetEventRoutine - an EventRoutine in which the cursor can be controlled using the arrow keys as well as the mouse. It has a string field which is the name of the target mode. This is the string that we’ll show in the bottom-left corner.

// app.rs
...
struct TargetEventRoutine {
    name: &'static str,
}

impl EventRoutine for TargetEventRoutine {
    type Return = Option<Coord>;
    type Data = AppData;
    type View = AppView;
    type Event = CommonEvent;

    fn handle<EP>(
        self,
        data: &mut Self::Data,
        _view: &Self::View,
        event_or_peek: EP,
    ) -> Handled<Self::Return, Self>
    where
        EP: EventOrPeek<Event = Self::Event>,
    {
        event_routine::event_or_peek_with_handled(event_or_peek, self, |s, event| {
            match event {
                CommonEvent::Input(input) => match input {
                    Input::Keyboard(key) => {
                        let delta = match key {
                            KeyboardInput::Left => Coord::new(-1, 0),
                            KeyboardInput::Right => Coord::new(1, 0),
                            KeyboardInput::Up => Coord::new(0, -1),
                            KeyboardInput::Down => Coord::new(0, 1),
                            keys::RETURN => {
                                let cursor = data.cursor;
                                data.cursor = None;
                                return Handled::Return(cursor);
                            }
                            keys::ESCAPE => {
                                data.cursor = None;
                                return Handled::Return(None);
                            }
                            _ => Coord::new(0, 0),
                        };
                        data.cursor = Some(
                            data.cursor
                                .unwrap_or_else(|| data.game_state.player_coord())
                                + delta,
                        );
                    }
                    Input::Mouse(mouse_input) => match mouse_input {
                        MouseInput::MouseMove { coord, .. } => data.cursor = Some(coord),
                        MouseInput::MousePress {
                            button: MouseButton::Left,
                            coord,
                        } => {
                            data.cursor = None;
                            return Handled::Return(Some(coord));
                        }
                        _ => (),
                    },
                },
                CommonEvent::Frame(_period) => (),
            };
            Handled::Continue(s)
        })
    }

    fn view<F, C>(
        &self,
        data: &Self::Data,
        view: &mut Self::View,
        context: ViewContext<C>,
        frame: &mut F,
    ) where
        F: Frame,
        C: ColModify,
    {
        view.game_view.view(&data.game_state, context, frame);
        view.render_ui(Some(self.name), &data, context, frame);
    }
}
...

Now update AppData::handle_input again so that when the ‘x’ key is pressed, we run the TargetEventRoutine so the player can examine cells moving the cursor with the arrow keys.

// app.rs
...
enum GameReturn {
    ...
    Examine,
}
...
impl AppData {
    ...
    fn handle_input(&mut self, input: Input) -> Option<GameReturn> {
        match input {
            Input::Keyboard(key) => {
                match key {
                    KeyboardInput::Char('x') => {
                        if self.cursor.is_none() {
                            self.cursor = Some(self.game_state.player_coord());
                        }
                        return Some(GameReturn::Examine);
                    }
                    ...
                }
                ...
            }
            ...
        }
        ...
    }
}
...
fn game_loop() -> impl EventRoutine<Return = (), Data = AppData, View = AppView, Event = CommonEvent>
{
    make_either!(Ei = A | B | C | D | E);
    Loop::new(|| {
        GameEventRoutine.and_then(|game_return| match game_return {
            ...
            GameReturn::Examine => Ei::E(TargetEventRoutine { name: "EXAMINE" }.map(|_| None)),
        })
    }).return_on_exit(|_| ())
}
...

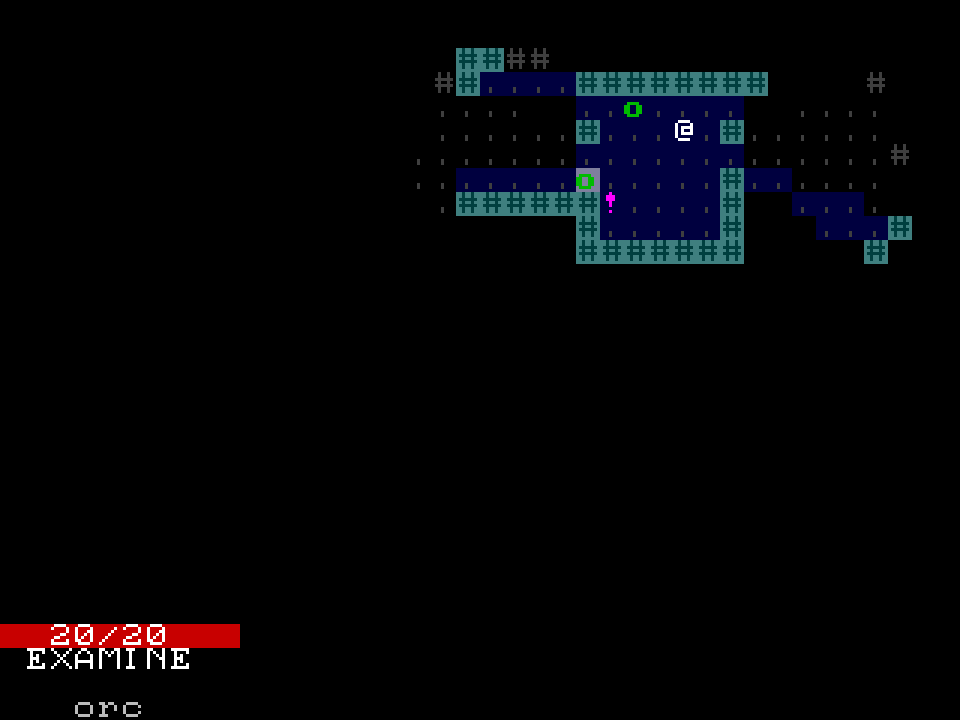

examine

Reference implementation branch: part-9.0

Place Fireball Scrolls

The first ranged item we’ll add will be fireball scrolls. Add FireballScroll as a new item type.

// world.rs
...
pub enum ItemType {
    ...
    FireballScroll,
}

impl ItemType {
    pub fn name(self) -> &'static str {
        match self {
            ...
            Self::FireballScroll => "fireball scroll",
        }
    }
}

impl World {
    ...
    pub fn maybe_use_item(
        &mut self,
        character: Entity,
        inventory_index: usize,
        message_log: &mut Vec<LogMessage>,
    ) -> Result<(), ()> {
        ...
        match item_type {
            ...
            ItemType::FireballScroll => {
                println!("todo");
            }
        }
        Ok(())
    }
    ...
}
// app.rs
...
pub mod colours {
    ...
    pub const FIREBALL_SCROLL: Rgb24 = Rgb24::new(255, 127, 0);
    ...
    pub fn item_colour(item_type: ItemType) -> Rgb24 {
        match item_type {
            ...
            ItemType::FireballScroll => FIREBALL_SCROLL,
        }
    }
}

fn currently_visible_view_cell_of_tile(tile: Tile) -> ViewCell {
    match tile {
        ...
        Tile::Item(ItemType::FireballScroll) => ViewCell::new()
            .with_character('♫')
            .with_foreground(colours::FIREBALL_SCROLL),
    }
}
...

Update the dungeon generator to place fireball scrolls. Generalize the logic which places health potions to place all items. For now gives fireball scrolls a 100% chance of spawning to make it easier to test.

// terrain.rs
...
impl Room {
    ...
    // Place `n` items at random positions within the room
    fn place_items<R: Rng>(&self, n: usize, grid: &mut Grid<Option<TerrainTile>>, rng: &mut R) {
        for coord in self
            .coords()
            .filter(|&coord| grid.get_checked(coord).unwrap() == TerrainTile::Floor)
            .choose_multiple(rng, n)
        {
            let item = match rng.gen_range(0, 100) {
                0..=100 => ItemType::FireballScroll,
                _ => ItemType::HealthPotion,
            };
            *grid.get_checked_mut(coord) = Some(TerrainTile::Item(item));
        }
    }
}

pub fn generate_dungeon<R: Rng>(size: Size, rng: &mut R) -> Grid<TerrainTile> {
    ...
    const ITEMS_PER_ROOM_DISTRIBUTION: &[usize] = &[0, 0, 1, 1, 1, 1, 1, 2, 2];
    ...
    for _ in 0..NUM_ATTEMPTS {
        ...
        if room.only_intersects_empty(&grid) {
            ...
            // Add items to the room
            let &num_items = ITEMS_PER_ROOM_DISTRIBUTION.choose(rng).unwrap();
            room.place_items(num_items, &mut grid, rng);
        }
    }
    ...
}

At this point you should be able to pick up fireball scrolls. When you use them the game will just print the text “todo” to stdout.

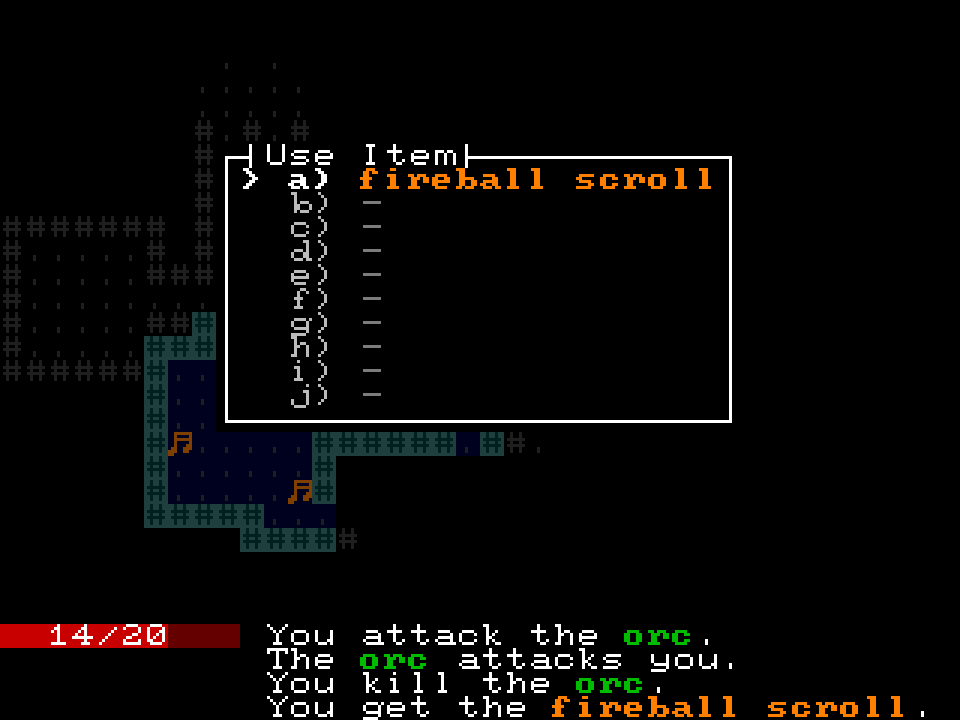

fireball-scroll

Reference implementation branch: part-9.1

Launching Fireballs

Now let’s make it possible to shoot fireballs when a fireball scroll is read. Rather than just teleporting the fireball to its target, let’s animate it moving along its trajectory.

In the previous section we just printed “todo” when a fireball scroll was used. Instead, we’d like the game to bring up the targeting AI, and when the user selects a target, shoot a fireball towards it. If the fireball hits a solid object along the way it should stop, and if the solid object is a character they should take damage.

When a health potion is used it is used immediately, but when a fireball scroll is used we display a UI. Let’s codify the different ways in which an item can be used:

// world.rs
...
#[derive(Clone, Copy)]
pub enum ItemUsage {
    Immediate,
    Aim,
}
...

Update item-usage methods to return the ItemUsage of the item being used. Previously we made the assumption that when an item is used, it is immediately removed from the inventory, but this is only true for items whose usage is Immediate. Update maybe_use_item to reflect this while we’re at it. We’ll need to implement Inventory::get.

// world.rs
...
impl Inventory {
    ...
    pub fn get(&self, index: usize) -> Result<Entity, InventorySlotIsEmpty> {
        self.slots
            .get(index)
            .cloned()
            .flatten()
            .ok_or(InventorySlotIsEmpty)
    }
}
...
impl World {
    ...
    pub fn maybe_use_item(
        &mut self,
        character: Entity,
        inventory_index: usize,
        message_log: &mut Vec<LogMessage>,
    ) -> Result<ItemUsage, ()> {
        let inventory = self
            .components
            .inventory
            .get_mut(character)
            .expect("character has no inventory");
        let item = match inventory.get(inventory_index) {
            Ok(item) => item,
            Err(InventorySlotIsEmpty) => {
                message_log.push(LogMessage::NoItemInInventorySlot);
                return Err(());
            }
        };
        let &item_type = self
            .components
            .item
            .get(item)
            .expect("non-item in inventory");
        let usage = match item_type {
            ItemType::HealthPotion => {
                let mut hit_points = self
                    .components
                    .hit_points
                    .get_mut(character)
                    .expect("character has no hit points");
                const HEALTH_TO_HEAL: u32 = 5;
                hit_points.current = hit_points.max.min(hit_points.current + HEALTH_TO_HEAL);
                inventory.remove(inventory_index).unwrap();
                message_log.push(LogMessage::PlayerHeals);
                ItemUsage::Immediate
            }
            ItemType::FireballScroll => ItemUsage::Aim,
        };
        Ok(usage)
    }
    ...
}
// game.rs
...
use crate::world::{
    HitPoints, Inventory, ItemType, ItemUsage, Location, NpcType, Populate, ProjectileType, Tile,
    World,
};
...
impl GameState {
    ...
    pub fn maybe_player_use_item(&mut self, inventory_index: usize) -> Result<ItemUsage, ()> {
        let result =
            self.world
                .maybe_use_item(self.player_entity, inventory_index, &mut self.message_log);
        if let Ok(usage) = result {
            match usage {
                ItemUsage::Immediate => self.ai_turn(),
                ItemUsage::Aim => (),
            }
        }
        result
    }
    ...
}

Update the use_item() EventRoutine to invoke the target EventRoutine when the player uses an item whose usage is Aim. Note the not-yet-implemented GameState::maybe_player_use_item_aim being called here, which will actually launch the fireball.

// app.rs
...
use chargrid::{
    ...
    event_routine::{
        self,
        common_event::{CommonEvent, Delay},
        make_either, DataSelector, Decorate, EventOrPeek, EventRoutine, EventRoutineView, Handled,
        Loop, SideEffect, SideEffectThen, Value, ViewSelector,
    },
    ...
};
...
fn use_item() -> impl EventRoutine<Return = (), Data = AppData, View = AppView, Event = CommonEvent>
{
    make_either!(Ei = A | B);
    Loop::new(|| {
        inventory_slot_menu("Use Item").and_then(|result| match result {
            Err(menu::Escape) => Ei::A(Value::new(Some(()))),
            Ok(entry) => Ei::B(SideEffectThen::new_with_view(
                move |data: &mut AppData, _: &_| {
                    make_either!(Ei = A | B | C);
                    if let Ok(usage) = data.game_state.maybe_player_use_item(entry.index) {
                        match usage {
                            ItemUsage::Immediate => Ei::A(Value::new(Some(()))),
                            ItemUsage::Aim => Ei::B(TargetEventRoutine { name: "AIM" }.and_then(
                                move |maybe_coord| {
                                    SideEffect::new_with_view(move |data: &mut AppData, _: &_| {
                                        if let Some(coord) = maybe_coord {
                                            if data
                                                .game_state
                                                .maybe_player_use_item_aim(entry.index, coord)
                                                .is_ok()
                                            {
                                                Some(())
                                            } else {
                                                None
                                            }
                                        } else {
                                            None
                                        }
                                    })
                                },
                            )),
                        }
                    } else {
                        Ei::C(Value::new(None))
                    }
                },
            )),
        })
    })
}
...

Implement GameState::maybe_player_use_item_aim.

// game.rs
...
impl GameState {
    ...
    pub fn maybe_player_use_item_aim(
        &mut self,
        inventory_index: usize,
        target: Coord,
    ) -> Result<(), ()> {
        self.world.maybe_use_item_aim(
            self.player_entity,
            inventory_index,
            target,
            &mut self.message_log,
        )
    }
    ...
}

And implement World::maybe_use_item_aim. This function assumes it’s called on a sensible item (e.g. you don’t try to aim a health potion). The game is implemented such that it should be impossible to call this method on an invalid item, so this function panics in this case. Should that panic ever execute, a bug has occurred at some point prior, and we shouldn’t try to continue running the game.

// world.rs
...
impl World {
    ...
    pub fn maybe_use_item_aim(
        &mut self,
        character: Entity,
        inventory_index: usize,
        target: Coord,
        message_log: &mut Vec<LogMessage>,
    ) -> Result<(), ()> {
        let character_coord = self.spatial_table.coord_of(character).unwrap();
        if character_coord == target {
            return Err(());
        }
        let inventory = self
            .components
            .inventory
            .get_mut(character)
            .expect("character has no inventory");
        let item_entity = inventory.remove(inventory_index).unwrap();
        let &item_type = self.components.item.get(item_entity).unwrap();
        match item_type {
            ItemType::HealthPotion => panic!("invalid item for aim"),
            ItemType::FireballScroll => {
                message_log.push(LogMessage::PlayerLaunchesProjectile(
                    ProjectileType::Fireball,
                ));
                self.spawn_projectile(character_coord, target, ProjectileType::Fireball);
            }
        }
        Ok(())
    }
    ...
}

Two things in the above code haven’t been defined yet:

Add the log message types.

// game.rs
...
use crate::world::{
    HitPoints, Inventory, ItemType, ItemUsage, Location, NpcType, Populate, ProjectileType, Tile,
    World,
};
...
pub enum LogMessage {
    ...
    PlayerLaunchesProjectile(ProjectileType),
}
...

This depends on a new type ProjectileType. Add it to world.rs.

// world.rs
...
#[derive(Clone, Copy, Debug)]
pub enum ProjectileType {
    Fireball,
}

impl ProjectileType {
    pub fn name(self) -> &'static str {
        match self {
            Self::Fireball => "fireball",
        }
    }
}
...

Handle the new type of log message.

// ui.rs
...
impl<'a> View<&'a [LogMessage]> for MessagesView {
    fn view<F: Frame, C: ColModify>(
        &mut self,
        messages: &'a [LogMessage],
        context: ViewContext<C>,
        frame: &mut F,
    ) {
        fn format_message(buf: &mut [RichTextPartOwned], message: LogMessage) {
            ...
            match message {
                ...
                PlayerLaunchesProjectile(projectile) => {
                    write!(&mut buf[0].text, "You launch a ").unwrap();
                    write!(&mut buf[1].text, "{}", projectile.name()).unwrap();
                    buf[1].style.foreground = Some(colours::projectile_colour(projectile));
                    write!(&mut buf[2].text, "!").unwrap();
                }
            }
        }
        ...
    }
}
...

This depends on colour::projectile_colour. Define it.

// app.rs
...
use crate::world::{ItemType, ItemUsage, Layer, NpcType, ProjectileType, Tile};
...
pub mod colours {
    pub fn projectile_colour(projcetile_type: ProjectileType) -> Rgb24 {
        match projcetile_type {
            ProjectileType::Fireball => FIREBALL_SCROLL,
        }
    }
}
...

Jumping all over the codebase today.

Back in world.rs, define the spawn_projectile method. Add a projectile component storing a ProjectileType, a Projectile tile, and a projcetile layer. Also add a trajectory component for storing the motion path of a projectile.

// world.rs
...
use line_2d::CardinalStepIter;
...
pub enum Tile {
    ...
    Projectile(ProjectileType),
}

entity_table::declare_entity_module! {
    components {
        ...
        trajectory: CardinalStepIter,
        projectile: ProjectileType,
    }
}
...
spatial_table::declare_layers_module! {
    layers {
        ...
        projectile: Projectile,
    }
}
...
impl World {
    ...
    fn spawn_projectile(&mut self, from: Coord, to: Coord, projectile_type: ProjectileType) {
        let entity = self.entity_allocator.alloc();
        self.spatial_table
            .update(
                entity,
                Location {
                    coord: from,
                    layer: Some(Layer::Projectile),
                },
            )
            .unwrap();
        self.components
            .tile
            .insert(entity, Tile::Projectile(projectile_type));
        self.components.projectile.insert(entity, projectile_type);
        self.components
            .trajectory
            .insert(entity, CardinalStepIter::new(to - from));
    }
    ...
}

Note the CardinalStepIter type. This is an iterator over the coordinates along a line segment between 2 points, only taking steps in cardinal directions. We’ll use it to compute the path followed by a projectile.

Handle the new tile type and new layer in app.rs:

// app.rs
...
impl<'a> View<&'a GameState> for GameView {
    fn view<F: Frame, C: ColModify>(
        &mut self,
        game_state: &'a GameState,
        context: ViewContext<C>,
        frame: &mut F,
    ) {
        for entity_to_render in game_state.entities_to_render() {
            ...
            let depth = match entity_to_render.location.layer {
                ...
                Some(Layer::Projectile) => 4,
            };
            ...
        }
    }
}
...
fn currently_visible_view_cell_of_tile(tile: Tile) -> ViewCell {
    match tile {
        ...
        Tile::Projectile(ProjectileType::Fireball) => ViewCell::new()
            .with_character('*')
            .with_foreground(colours::FIREBALL_SCROLL),
    }
}
...

Add a method to World for moving all projectiles one step along their motion path.

// world.rs
...
impl World {
    ...
    pub fn move_projectiles(&mut self, message_log: &mut Vec<LogMessage>) {
        let mut entities_to_remove = Vec::new();
        let mut fireball_hit = Vec::new();
        for (entity, trajectory) in self.components.trajectory.iter_mut() {
            if let Some(direction) = trajectory.next() {
                let current_coord = self.spatial_table.coord_of(entity).unwrap();
                let new_coord = current_coord + direction.coord();
                let dest_layers = self.spatial_table.layers_at_checked(new_coord);
                if dest_layers.feature.is_some() {
                    entities_to_remove.push(entity);
                } else if let Some(character) = dest_layers.character {
                    entities_to_remove.push(entity);
                    if let Some(&projectile_type) = self.components.projectile.get(entity) {
                        match projectile_type {
                            ProjectileType::Fireball => {
                                fireball_hit.push(character);
                            }
                        }
                    }
                }

                // ignore collisiosns of projectiles
                let _ = self.spatial_table.update_coord(entity, new_coord);
            } else {
                entities_to_remove.push(entity);
            }
        }
        for entity in entities_to_remove {
            self.remove_entity(entity);
        }
        for entity in fireball_hit {
            let maybe_npc = self.components.npc_type.get(entity).cloned();
            if let Some(VictimDies) = self.character_damage(entity, 2) {
                if let Some(npc) = maybe_npc {
                    message_log.push(LogMessage::NpcDies(npc));
                }
            }
        }
    }
    ...
}

This requires some generalizations of our combat logic, in particular adding a character_damage method, extracting this logic from character_bump_attack.

// world.rs
...
impl World {
    ...
    fn character_bump_attack(&mut self, victim: Entity) -> Option<VictimDies> {
        self.character_damage(victim, 1)
    }

    fn character_damage(&mut self, victim: Entity, damage: u32) -> Option<VictimDies> {
        if let Some(hit_points) = self.components.hit_points.get_mut(victim) {
            hit_points.current = hit_points.current.saturating_sub(damage);
            if hit_points.current == 0 {
                self.character_die(victim);
                return Some(VictimDies);
            }
        }
        None
    }
    ...
}

If an NPC is killed by a fireball, a new log message NpcDies is generated. Add it.

// game.rs
...
pub enum LogMessage {
    ...
    NpcDies(NpcType),
}
...

And handle it.

// ui.rs
...
impl<'a> View<&'a [LogMessage]> for MessagesView {
    fn view<F: Frame, C: ColModify>(
        &mut self,
        messages: &'a [LogMessage],
        context: ViewContext<C>,
        frame: &mut F,
    ) {
        fn format_message(buf: &mut [RichTextPartOwned], message: LogMessage) {
            ...
            match message {
                ...
                NpcDies(npc_type) => {
                    write!(&mut buf[0].text, "The ").unwrap();
                    write!(&mut buf[1].text, "{}", npc_type.name()).unwrap();
                    buf[1].style.foreground = Some(colours::npc_colour(npc_type));
                    write!(&mut buf[2].text, " dies.").unwrap();
                }
            }
        }
        ...
    }
}
...
// world.rs

Add a method to World for testing whether there are any projectiles. We’re about to add a simple realtime animation system, and we want an easy way to check whether any animations are in progress so controls can be ignored while animations are playing.

// world.rs
...
impl World {
    ...
    pub fn has_projectiles(&self) -> bool {
        !self.components.trajectory.is_empty()
    }
    ...
}

Add animation methods to GameState, and prevent the player from acting while animations are in progress.

// game.rs
...
impl GameState {
    pub fn tick_animations(&mut self) {
        self.world.move_projectiles(&mut self.message_log)
    }
    fn has_animations(&self) -> bool {
        self.world.has_projectiles()
    }
    ...
    pub fn wait_player(&mut self) {
        if self.has_animations() {
            return;
        }
        ...
    }
    pub fn maybe_move_player(&mut self, direction: CardinalDirection) {
        if self.has_animations() {
            return;
        }
        ...
    }
    pub fn maybe_player_get_item(&mut self) {
        if self.has_animations() {
            return;
        }
        ...
    }
    pub fn maybe_player_use_item(&mut self, inventory_index: usize) -> Result<ItemUsage, ()> {
        if self.has_animations() {
            return Err(());
        }
        ...
    }
    ...
}

Now we need to periodically tick animations by calling GameState::tick_animations. Let’s only progress animations during normal gameplay, at a rate of 30 FPS (regardless of the game’s actual framerate). Since the game is likely running at a higher framerate, we need to keep track of the passage of time, and only progress animations very 33ms. Game ticks are sent to EventRoutines in the form of CommonEvent::Frame(period) events, where period is a std::time::Duration containing the amount of time that has passed since the previous frame. Ticks are generally synchronized to the display’s framerate, but this is not a necessity and you shouldn’t rely on it.

// app.rs
...
const BETWEEN_ANIMATION_TICKS: Duration = Duration::from_millis(33);
...
struct AppData {
    ...
    until_next_animation_tick: Duration,
}

impl AppData {
    fn new(screen_size: Size, rng_seed: u64, visibility_algorithm: VisibilityAlgorithm) -> Self {
        ...
        Self {
            ...
            until_next_animation_tick: Duration::from_millis(0),
        }
    }
    ...
}
...
impl EventRoutine for GameEventRoutine {
    type Return = GameReturn;
    type Data = AppData;
    type View = AppView;
    type Event = CommonEvent;

    fn handle<EP>(
        self,
        data: &mut Self::Data,
        _view: &Self::View,
        event_or_peek: EP,
    ) -> Handled<Self::Return, Self>
    where
        EP: EventOrPeek<Event = Self::Event>,
    {
        event_routine::event_or_peek_with_handled(event_or_peek, self, |s, event| match event {
            CommonEvent::Input(input) => {
                ...
            }
            CommonEvent::Frame(period) => {
                if let Some(until_next_animation_tick) =
                    data.until_next_animation_tick.checked_sub(period)
                {
                    data.until_next_animation_tick = until_next_animation_tick;
                } else {
                    data.until_next_animation_tick = BETWEEN_ANIMATION_TICKS;
                    data.game_state.tick_animations();
                }
                Handled::Continue(s)
            }
        })
    }
    ...
}

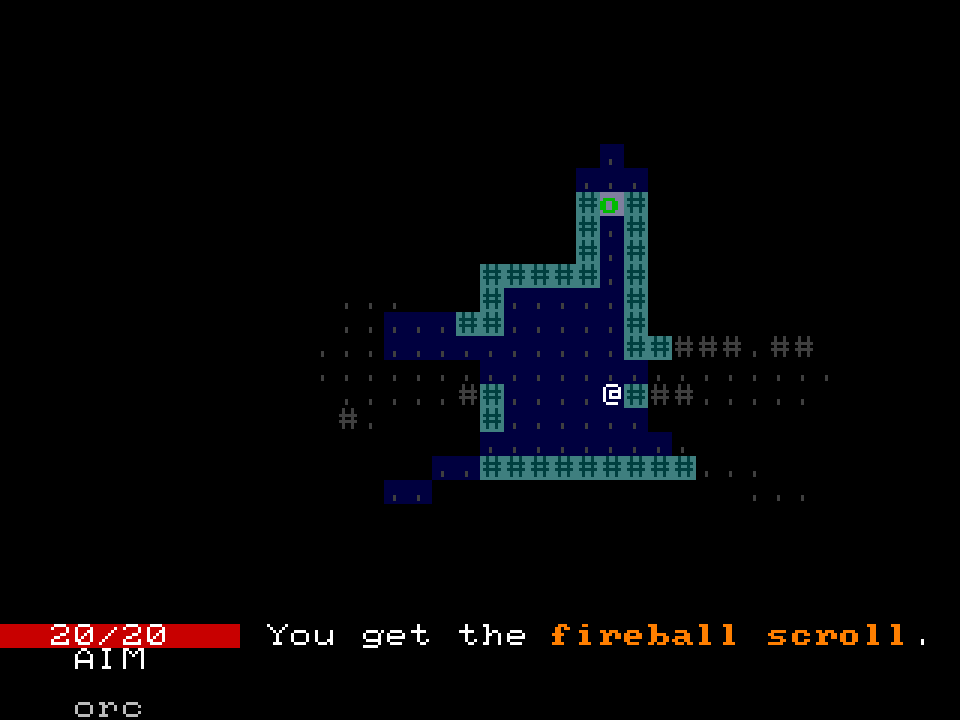

And that should do it. Try picking up a fireball scroll and using it via the inventory menu. You’ll be presented with an “AIM” target ui. Target an NPC and hit the enter key or press the left mouse button.

aim

A fireball will appear, and in realtime move towards the NPC.

launch

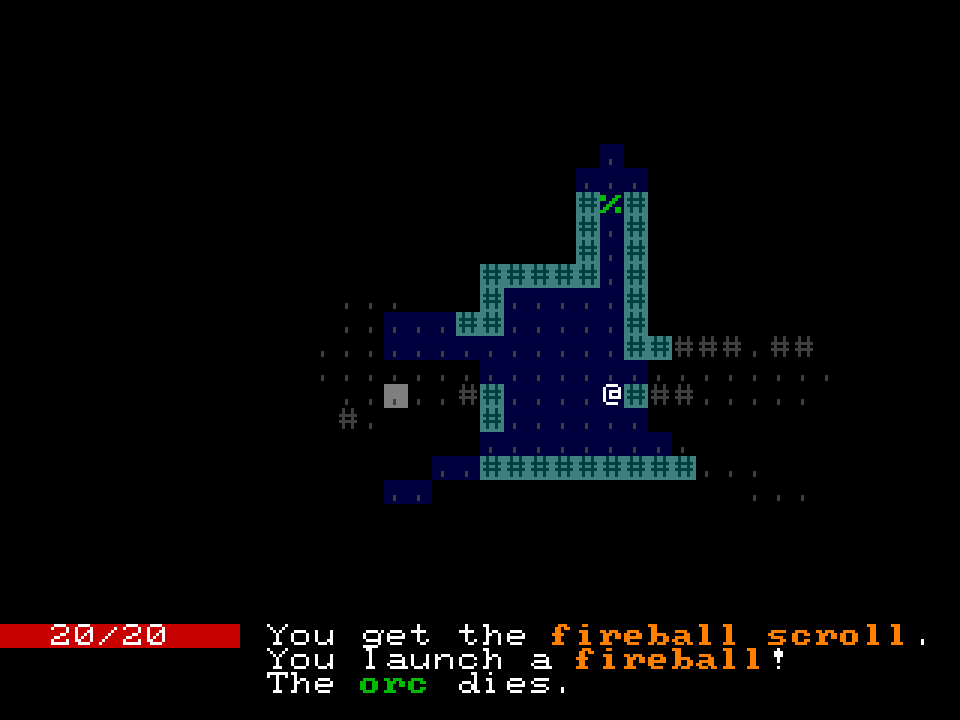

When it hits them, they’ll take damage and possibly die.

hit

Reference implementation branch: part-9.2

Confusion Scroll

Add a ConfusionScroll item, and Confusion projectile.

// world.rs
...
pub enum ProjectileType {
    ...
    Confusion,
}
...
impl ProjectileType {
    pub fn name(self) -> &'static str {
        match self {
            ...
            Self::Confusion => "confusion spell",
        }
    }
}
pub enum ItemType {
    ...
    ConfusionScroll,
}
impl ItemType {
    pub fn name(self) -> &'static str {
        match self {
            ...
            Self::ConfusionScroll => "confusion scroll",
        }
    }
}
...

Add rendering logic for the new item and projectile.

// app.rs
...
pub mod colours {
    ...
    pub const CONFUSION_SCROLL: Rgb24 = Rgb24::new(187, 0, 255);
    ...
    pub fn item_colour(item_type: ItemType) -> Rgb24 {
        match item_type {
            ...
            ItemType::ConfusionScroll => CONFUSION_SCROLL,
        }
    }

    pub fn projectile_colour(projcetile_type: ProjectileType) -> Rgb24 {
        match projcetile_type {
            ...
            ProjectileType::Confusion => CONFUSION_SCROLL,
        }
    }
}
...
fn currently_visible_view_cell_of_tile(tile: Tile) -> ViewCell {
    match tile {
        ...
        Tile::Item(ItemType::ConfusionScroll) => ViewCell::new()
            .with_character('♫')
            .with_foreground(colours::CONFUSION_SCROLL),
        Tile::Projectile(ProjectileType::Fireball) => ViewCell::new()
            .with_character('*')
            .with_foreground(colours::FIREBALL_SCROLL),
        Tile::Projectile(ProjectileType::Confusion) => ViewCell::new()
            .with_character('*')
            .with_foreground(colours::CONFUSION_SCROLL),
    }
}

Place confusion scrolls during dungeon generation. Also rebalance the probabilities of items such that health potions may appear again.

// terrain.rs
...
impl Room {
    ...
    // Place `n` items at random positions within the room
    fn place_items<R: Rng>(&self, n: usize, grid: &mut Grid<Option<TerrainTile>>, rng: &mut R) {
        for coord in self
            .coords()
            .filter(|&coord| grid.get_checked(coord).unwrap() == TerrainTile::Floor)
            .choose_multiple(rng, n)
        {
            let item = match rng.gen_range(0, 100) {
                0..=29 => ItemType::FireballScroll,
                30..=49 => ItemType::ConfusionScroll,
                _ => ItemType::HealthPotion,
            };
            *grid.get_checked_mut(coord) = Some(TerrainTile::Item(item));
        }
    }
}

When a character becomes confused, they will move randomly for 5 turns. To keep track of the number of turns until a confused character recovers, add a confusion_countdown component. Entities which have this component will be considered to be confused, and it will also track the time until recovery.

// world.rs
...
entity_table::declare_entity_module! {
    components {
        ...
        confusion_countdown: u32,
    }
}
..

Set the UsageType for confusion scrolls, spawn a projectile when a confusion scroll is used, and set what happens when a confusion spell hits an NPC.

// world.rs
...
impl World {
    ...
    pub fn maybe_use_item(
        &mut self,
        character: Entity,
        inventory_index: usize,
        message_log: &mut Vec<LogMessage>,
    ) -> Result<ItemUsage, ()> {
        ...
        let usage = match item_type {
            ...
            ItemType::FireballScroll | ItemType::ConfusionScroll => ItemUsage::Aim,
        };
        ...
    }
    ...
    pub fn maybe_use_item_aim(
        &mut self,
        character: Entity,
        inventory_index: usize,
        target: Coord,
        message_log: &mut Vec<LogMessage>,
    ) -> Result<(), ()> {
        ...
        match item_type {
            ...
            ItemType::ConfusionScroll => {
                message_log.push(LogMessage::PlayerLaunchesProjectile(
                    ProjectileType::Confusion,
                ));
                self.spawn_projectile(character_coord, target, ProjectileType::Confusion);
            }
        }
        Ok(())
    }
    ...
    pub fn move_projectiles(&mut self, message_log: &mut Vec<LogMessage>) {
        ...
        let mut confusion_hit = Vec::new();
        for (entity, trajectory) in self.components.trajectory.iter_mut() {
            if let Some(direction) = trajectory.next() {
                if dest_layers.feature.is_some() {
                    ...
                } else if let Some(character) = dest_layers.character {
                    entities_to_remove.push(entity);
                    if let Some(&projectile_type) = self.components.projectile.get(entity) {
                        match projectile_type {
                            ...
                            ProjectileType::Confusion => {
                                confusion_hit.push(character);
                            }
                        }
                    }
                }
                ...
            }
        }
        ...
        for entity in confusion_hit {
            self.components.confusion_countdown.insert(entity, 5);
            if let Some(&npc_type) = self.components.npc_type.get(entity) {
                message_log.push(LogMessage::NpcBecomesConfused(npc_type));
            }
        }
    }
}

Add and handle log messages for becoming confused and recovering.

// game.rs
...
pub enum LogMessage {
    ...
    NpcBecomesConfused(NpcType),
    NpcIsNoLongerConfused(NpcType),
}
...
// ui.rs
...
impl<'a> View<&'a [LogMessage]> for MessagesView {
    fn view<F: Frame, C: ColModify>(
        &mut self,
        messages: &'a [LogMessage],
        context: ViewContext<C>,
        frame: &mut F,
    ) {
        fn format_message(buf: &mut [RichTextPartOwned], message: LogMessage) {
            ...
            match message {
                ...
                NpcBecomesConfused(npc_type) => {
                    write!(&mut buf[0].text, "The ").unwrap();
                    write!(&mut buf[1].text, "{}", npc_type.name()).unwrap();
                    buf[1].style.foreground = Some(colours::npc_colour(npc_type));
                    write!(&mut buf[2].text, " is confused.").unwrap();
                }
                NpcIsNoLongerConfused(npc_type) => {
                    write!(&mut buf[0].text, "The ").unwrap();
                    write!(&mut buf[1].text, "{}", npc_type.name()).unwrap();
                    buf[1].style.foreground = Some(colours::npc_colour(npc_type));
                    write!(&mut buf[2].text, "'s confusion passes.").unwrap();
                }
            }
        }
        ...
    }
}

Now let’s update movement logic such that confused characters move in random directions. To use the Rng trait to select a random direction, we need to enable the optional rand feature of the direction crate.

# Cargo.toml
[dependencies]
...
direction = { version = "0.17", features = ["rand"] }

In game.rs, start passing a rng to World::maybe_move_character.

// game.rs
...
impl GameState {
    ...
    pub fn maybe_move_player(&mut self, direction: CardinalDirection) {
        ...
        self.world.maybe_move_character(
            self.player_entity,
            direction,
            &mut self.message_log,
            &mut self.rng,
        );
        ...
    }
    ...
    fn ai_turn(&mut self) {
        ...
        for (entity, agent) in self.ai_state.iter_mut() {
            ...
            match npc_action {
                ...
                NpcAction::Move(direction) => self.world.maybe_move_character(
                    entity,
                    direction,
                    &mut self.message_log,
                    &mut self.rng,
                ),
            }
        }
    }
    ...
}

And update World::maybe_move_character to take an rng as an argument and use it to move characters randomly when they are confused, also decreasing, and eventually removing, their confusion_countdown component.

// world.rs
...
impl World {
    ...
    pub fn maybe_move_character<R: Rng>(
        &mut self,
        character_entity: Entity,
        direction: CardinalDirection,
        message_log: &mut Vec<LogMessage>,
        rng: &mut R,
    ) {
        let character_coord = self
            .spatial_table
            .coord_of(character_entity)
            .expect("character has no coord");
        let direction = if let Some(confusion_countdown) = self
            .components
            .confusion_countdown
            .get_mut(character_entity)
        {
            if *confusion_countdown == 0 {
                self.components.confusion_countdown.remove(character_entity);
                if let Some(&npc_type) = self.components.npc_type.get(character_entity) {
                    message_log.push(LogMessage::NpcIsNoLongerConfused(npc_type));
                }
            } else {
                *confusion_countdown -= 1;
            }
            rng.gen()
        } else {
            direction
        };
        let new_character_coord = character_coord + direction.coord();
        ...
    }
    ...
}

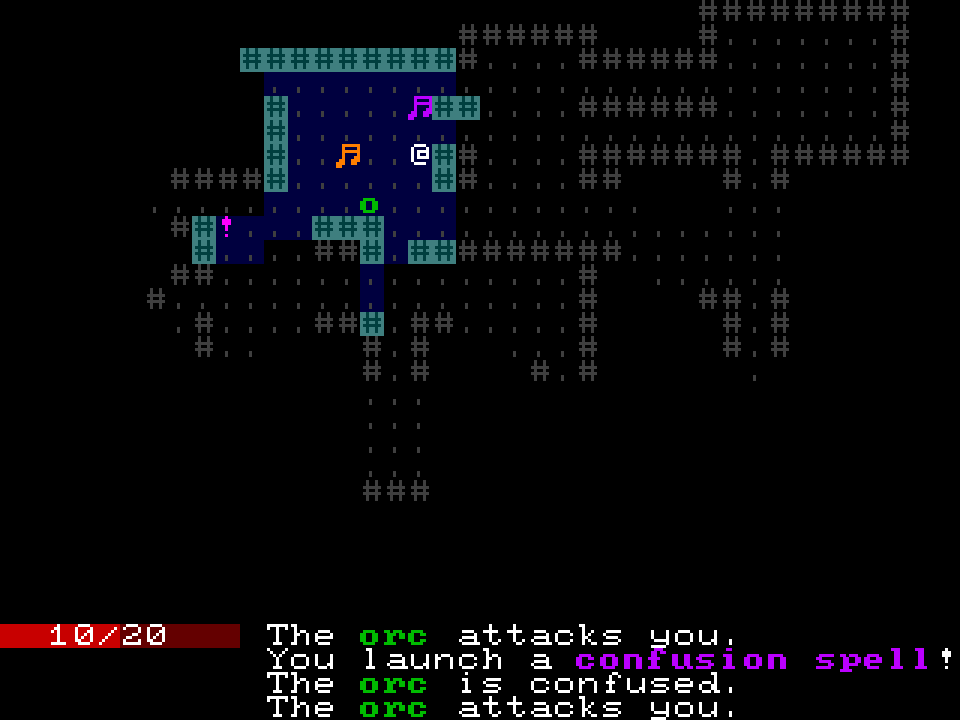

It’s now possible to launch confusion spells in the same way as you launch fireballs. NPCs hit with confusion spells move randomly for their next 5 turns.

confusion

Reference implementation branch: part-9.3
