Roguelike Tutorial 2020: Part 4 - Field of View

In this part we’ll implement visible area detection, so players can only see what their character can see, and what they remember seeing.

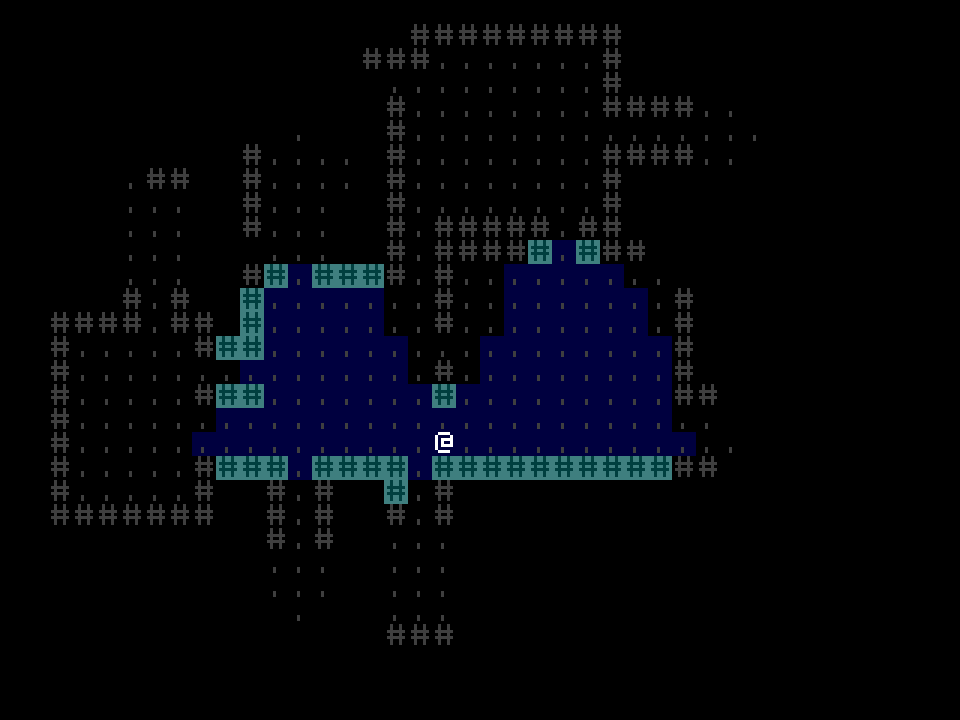

By the end of this part, the game will look like this: screenshot-end

This part is loosely based on this part of the python tcod tutorial.

Reference implementation branch for starting point: part-3-end

In this post:

Separate World Representation from Game State

Before adding field-of-view, let’s move some fields of GameState into a new struct called World. Splitting large structs into a deeper hierarchy of small structs with specific purposes is good practice in general, and in rust in particular it can help keep the borrow-checker off our backs.

In a new file src/world.rs, define a type World:

// world.rs
...
pub struct World {
    pub entity_allocator: EntityAllocator,
    pub components: Components,
    pub spatial_table: SpatialTable,
}

Move all the types and methods relating to world representation from src/game.rs into src/world.rs. When you’re done, GameState should be a thin wrapper around the new World type (we’ll add more to it shortly). All that’s left of src/game.rs will be:

// game.rs
use crate::world::{Location, Populate, Tile, World};
use coord_2d::Size;
use direction::CardinalDirection;
use entity_table::Entity;
use rand::SeedableRng;
use rand_isaac::Isaac64Rng;

pub struct EntityToRender {
    pub tile: Tile,
    pub location: Location,
}

pub struct GameState {
    world: World,
    player_entity: Entity,
}

impl GameState {
    pub fn new(screen_size: Size) -> Self {
        let mut world = World::new(screen_size);
        let mut rng = Isaac64Rng::from_entropy();
        let Populate { player_entity } = world.populate(&mut rng);
        Self { world, player_entity }
    }
    pub fn maybe_move_player(&mut self, direction: CardinalDirection) {
        self.world.maybe_move_character(self.player_entity, direction);
    }
    pub fn entities_to_render<'a>(&'a self) -> impl 'a + Iterator<Item = EntityToRender> {
        let tile_component = &self.world.components.tile;
        let spatial_table = &self.world.spatial_table;
        tile_component.iter().filter_map(move |(entity, &tile)| {
            let &location = spatial_table.location_of(entity)?;
            Some(EntityToRender { tile, location })
        })
    }
}

Here’s how the code should look after this refactor: part-4.0

In particular, note the new file src/world.rs.

Add Field of View

Now for the interesting part. We’ll be adding visible-area-detection using an implementation of the “Recursive Shadowcast” algorithm. For a detailed description of this algorithm, see this post on gridbugs or this one on roguebasin. Grab a crate which contains an implementation of the field-of-view algorithm:

# Cargo.toml
...
[dependencies]
shadowcast = "0.7"

The shadowcast crate doesn’t assume anything about how the world is represented. In order to compute the visible area, it needs to know some things about the world. In particular, this trait must be implemented:

pub trait InputGrid {

    // type containing the world state
    type Grid;

    // type representing the opacity at a point of the world
    type Opacity;

    // the dimensions of the world
    fn size(&self, grid: &Self::Grid) -> Size;

    // query the opacity of the world at a particular coordinate
    fn get_opacity(&self, grid: &Self::Grid, coord: Coord) -> Self::Opacity;
}

Let’s implement this trait for our game! Make a new file src/visibility.rs:

// visibility.rs
use crate::world::World;
use coord_2d::{Coord, Size};

struct Visibility;

impl shadowcast::InputGrid for Visibility {
    type Grid = World;
    type Opacity = u8;
    fn size(&self, world: &Self::Grid) -> Size {
        world.size()
    }
    fn get_opacity(&self, world: &Self::Grid, coord: Coord) -> Self::Opacity {
        world.opacity_at(coord)
    }
}

The Visibility type has no state, and serves only as a named implementation of the InputGrid trait. Note that the size and opacity_at methods of World don’t exist yet. Let’s write them now.

// world.rs
...
impl World {
    ...
    pub fn size(&self) -> Size {
        self.spatial_table.grid_size()
    }
    pub fn opacity_at(&self, coord: Coord) -> u8 {
        if self
            .spatial_table
            .layers_at_checked(coord)
            .feature
            .is_some()
        {
            255
        } else {
            0
        }
    }
}

For now, if a cell contains a feature it is fully opaque, and otherwise it is fully transparent.

Now we need a way to represent what the player can currently see, and what they have seen in the past. Represent this with a grid of cells. Every so often (perhaps once per turn), we’ll iterate over all the cells that the player can currently see, and mark the cells in this grid as “currently visible”. To avoid needing to visit all the other cells, and mark them as “not currently visible”, we’ll employ the following technique:

Keep a counter which is incremented each time the visible area is updated. Each cell of the grid will store the value that the counter had the last time that cell was visible. A cell is currently visible if its value is the same as the current counter value. A cell was previously visible if its value is above 0 (as the counter is initialized to 1).

// visibility.rs
use grid_2d::Grid;
...
pub struct VisibilityGrid {
    grid: Grid<VisibilityCell>,
    count: u64,
}

impl VisibilityGrid {
    pub fn new(size: Size) -> Self {
        Self {
            grid: Grid::new_default(size),
            count: 1,
        }
    }
    pub fn cell_visibility(&self, coord: Coord) -> CellVisibility {
        if let Some(cell) = self.grid.get(coord) {
            if cell.last_seen == self.count {
                CellVisibility::Currently
            } else if cell.last_seen == 0 {
                CellVisibility::Never
            } else {
                CellVisibility::Previously
            }
        } else {
            CellVisibility::Never
        }
    }
}
struct VisibilityCell {
    last_seen: u64,
}

impl Default for VisibilityCell {
    fn default() -> Self {
        Self { last_seen: 0 }
    }
}

pub enum CellVisibility {
    Currently,
    Previously,
    Never,
}

Now we need a way to update this grid by visiting all visible cells:

// visibility.rs
...

const VISION_DISTANCE_SQUARED: u32 = 100;
const VISION_DISTANCE: shadowcast::vision_distance::Circle =
    shadowcast::vision_distance::Circle::new_squared(VISION_DISTANCE_SQUARED);

...

impl VisibilityGrid {
    ...
    pub fn update(
        &mut self,
        player_coord: Coord,
        world: &World,
        shadowcast_context: &mut shadowcast::Context<u8>,
    ) {
        self.count += 1;
        let count = self.count;
        let grid = &mut self.grid;
        shadowcast_context.for_each_visible(
            player_coord,       // centre of vision
            &Visibility,        // implementation of InputGrid
            world,              // world representation (InputGrid::World)
            VISION_DISTANCE,    // shape and size of visible area
            255,                // max opacity value (InputGrid::Opacity)
            |coord, _visible_directions, _visibility| {
                let cell = grid.get_checked_mut(coord);
                cell.last_seen = count;
            },
        );
    }
}

Computing visible area involves populating some heap-allocated data structures (see the implementation of shadowcast for details). To prevent needing to allocate and free these structures each time the visible area is updated, all these data structures are contained in a shadowcast::Context, allowing the memory to be re-used each time. Its type parameter corresponds to InputGrid::Opacity.

Add a VisibilityGrid and shadowcast::Context<u8> to GameState, and add a method to ‘GameState’ for updating the visible area.

// game.rs
use crate::visibility::{CellVisibility, VisibilityGrid};
...
pub struct GameState {
    world: World,
    player_entity: Entity,
    shadowcast_context: shadowcast::Context<u8>,
    visibility_grid: VisibilityGrid,
}

impl GameState {
    pub fn new(screen_size: Size) -> Self {
        let mut world = World::new(screen_size);
        let mut rng = Isaac64Rng::from_entropy();
        let Populate { player_entity } = world.populate(&mut rng);
        let shadowcast_context = shadowcast::Context::default();
        let visibility_grid = VisibilityGrid::new(screen_size);
        let mut game_state = Self {
            world,
            player_entity,
            shadowcast_context,
            visibility_grid,
        };
        game_state.update_visibility();
        game_state
    }
    pub fn update_visibility(&mut self) {
        let player_coord = self.world.spatial_table.coord_of(self.player_entity).unwrap();
        self.visibility_grid
            .update(player_coord, &self.world, &mut self.shadowcast_context);
    }
    ...
}

Note the call to game_state.update_visibility() within GameState::new. This is so when the game starts, the initially-visible area is marked as visible.

In order to tell the rendering logic whether a cell is currently, previously, or never visible, update EntityToRender to contain a CellVisibility, and update entities_to_render to set the new field:

pub struct EntityToRender {
    pub tile: Tile,
    pub location: Location,
    pub visibility: CellVisibility,
}

impl GameState {
    ...
    pub fn entities_to_render<'a>(&'a self) -> impl 'a + Iterator<Item = EntityToRender> {
        let tile_component = &self.world.components.tile;
        let spatial_table = &self.world.spatial_table;
        let visibility_grid = &self.visibility_grid;
        tile_component.iter().filter_map(move |(entity, &tile)| {
            let &location = spatial_table.location_of(entity)?;
            let visibility = visibility_grid.cell_visibility(location.coord);
            Some(EntityToRender {
                tile,
                location,
                visibility,
            })
        })
    }
}

Update the rendering logic to draw cells differently depending on their visibility.

// app.rs
use crate::visibility::CellVisibility;
...
fn currently_visible_view_cell_of_tile(tile: Tile) -> ViewCell {
    match tile {
        Tile::Player => ViewCell::new()
            .with_character('@')
            .with_foreground(Rgb24::new_grey(255)),
        Tile::Floor => ViewCell::new()
            .with_character('.')
            .with_foreground(Rgb24::new_grey(63))
            .with_background(Rgb24::new(0, 0, 63)),
        Tile::Wall => ViewCell::new()
            .with_character('#')
            .with_foreground(Rgb24::new(0, 63, 63))
            .with_background(Rgb24::new(63, 127, 127)),
    }
}

fn previously_visible_view_cell_of_tile(tile: Tile) -> ViewCell {
    match tile {
        Tile::Player => ViewCell::new()
            .with_character('@')
            .with_foreground(Rgb24::new_grey(255)),
        Tile::Floor => ViewCell::new()
            .with_character('.')
            .with_foreground(Rgb24::new_grey(63))
            .with_background(Rgb24::new_grey(0)),
        Tile::Wall => ViewCell::new()
            .with_character('#')
            .with_foreground(Rgb24::new_grey(63))
            .with_background(Rgb24::new_grey(0)),
    }
}

impl<'a> View<&'a AppData> for AppView {
    fn view<F: Frame, C: ColModify>(
        &mut self,
        data: &'a AppData,
        context: ViewContext<C>,
        frame: &mut F,
    ) {
        for entity_to_render in data.game_state.entities_to_render() {
            let view_cell = match entity_to_render.visibility {
                CellVisibility::Currently => {
                    currently_visible_view_cell_of_tile(entity_to_render.tile)
                }
                CellVisibility::Previously => {
                    previously_visible_view_cell_of_tile(entity_to_render.tile)
                }
                CellVisibility::Never => ViewCell::new(),
            };
            let depth = match entity_to_render.location.layer {
                None => -1,
                Some(Layer::Floor) => 0,
                Some(Layer::Feature) => 1,
                Some(Layer::Character) => 2,
            };
            frame.set_cell_relative(
                entity_to_render.location.coord,
                depth,
                view_cell,
                context,
            );
        }
    }
}

And finally update AppData::handle_innput to call update_visibility() after handling an input event:

impl AppData {
    fn handle_input(&mut self, input: Input) {
        match input {
            ...
        }
        self.game_state.update_visibility();
    }

}

screenshot-end

Reference implementation branch: part-4.1

Click here for the next part!
